SEPL’s Cage Valves: Interchangeable Solutions for Pumps

Sudarshan Elastomer Pvt Ltd (SEPL) offers Cage Valves compatible with APLEX, FMC BEAN, WEATHERFORD, WHEATLY PUMP, and more.

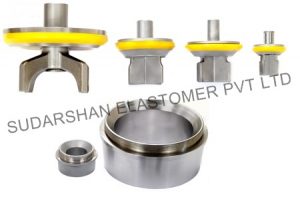

Valve and Seat: High-Performance Components

SEPL’s Valve and Seat are made from 17-4PH (AISI17-4PH), a martensitic stainless steel with high mechanical properties after heat treatment.

– Key Features:

– Good impact strength and corrosion resistance up to 649°C

– Scaling resistance in high-temperature applications

– Widely used in steam, gas turbine, and machinery components

– Alternative Materials:

– 316 stainless steel

– Carburized 8620 alloy steel

– Other materials available upon request

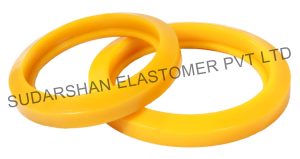

Valve Seal: High-Performance Polyurethane

SEPL’s Valve Seal features a specially designed Polyurethane insert, offering:

– Toughness and abrasion resistance

– Shock load withstanding capability

– Temperature range: -65°F to +200°F

– Economical and reliable choice for demanding applications

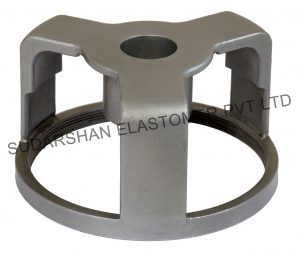

Cage: High-Strength 17-4PH Stainless Steel

SEPL’s Cage is made from 17-4PH (AISI17-4PH), a martensitic stainless steel with:

– High mechanical properties after heat treatment

– Good impact strength and corrosion resistance up to 649°C

– Scaling resistance in high-temperature applications

– Widely used in demanding industries like steam, gas turbine, and machinery components

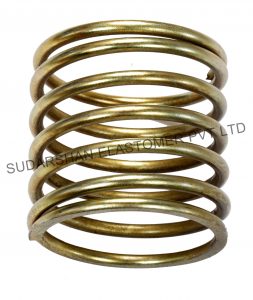

Spring: High-Performance Options

SEPL’s Spring is available in:

– Spring Steel (zinc coated): sustains extreme loads and temperatures, corrosion-resistant

– Stainless Steel: for highly corrosive service environments

Benefits:

– Long-lasting performance

– Resistant to corrosion and extreme conditions

– Customizable for specific application needs

SEPL offers a wide range of cage valves and can replace conventional valves with AR valves for better performance. Contact us for queries or custom solutions!
